Fleet GPS Vehicle Traker

1. GPS tracker + RFID Car alarm with long-distance tag;

2. Active RFID Driver ID identification(optional)

3. Track on command or by time interval or by distance;

4. Arm/disarm by SMS, phone call;

5. Arm/disarm automatically by 2.4G RFID tag(optional);

6. Check the car’s real physical address (such as city name, street name..);

7. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.

8. Check the location directly by the Google map’s URL;

9. Online website tracking by GPRS data network;

10. Odometer function

11. Over-speed alert, Geo-fence alert, movement alarm;

12. Snap photo and send out via MMS &Email when there is SOS alarm, ACC On alarm or door open alarm, snap the photo via platform;

13. Speed limiter, when the speed is over limitation, the siren will sound to warn driver & relay will response to slow down the car automatically;

14. Crash alarm, when there is crash & it can detect it automatically;

15. Fatigue driving alarm, if continuous driving time is over the limitation, the siren will sound to warn the driver;

16. Check the coordinates via LBS, even there is no any GPS signal..

17. Support voice monitoring & 2-way talking(optional);

18. Cut off engine to stop the car safely by SMS/GPRS;

19. Built-in shock sensor for power saving & triggering alarm

20. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alert immediately.

21. SOS alarm & anti-tamper alarm;

22. Support analog input for fuel monitoring or temperature monitoring;

23. I/O: 5 digital inputs, 2 analog inputs & 5 digital outputs(2 impulse outputs);

24. Lock/unlock the car door remotely by SMS/platform;

25. Wide working voltage range, from 6V-45VDC, suitable for car or big truck.

26. There are 3 types of working mode for power saving flexibly.

27. 4Mb offline data logger, it can store 8192 waypoints

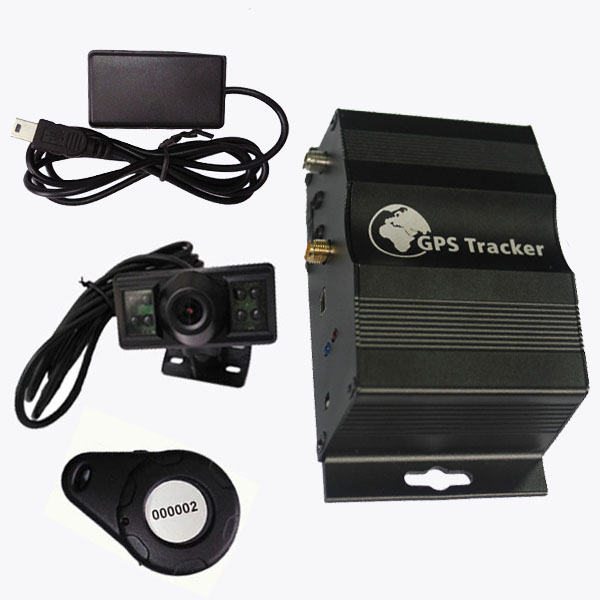

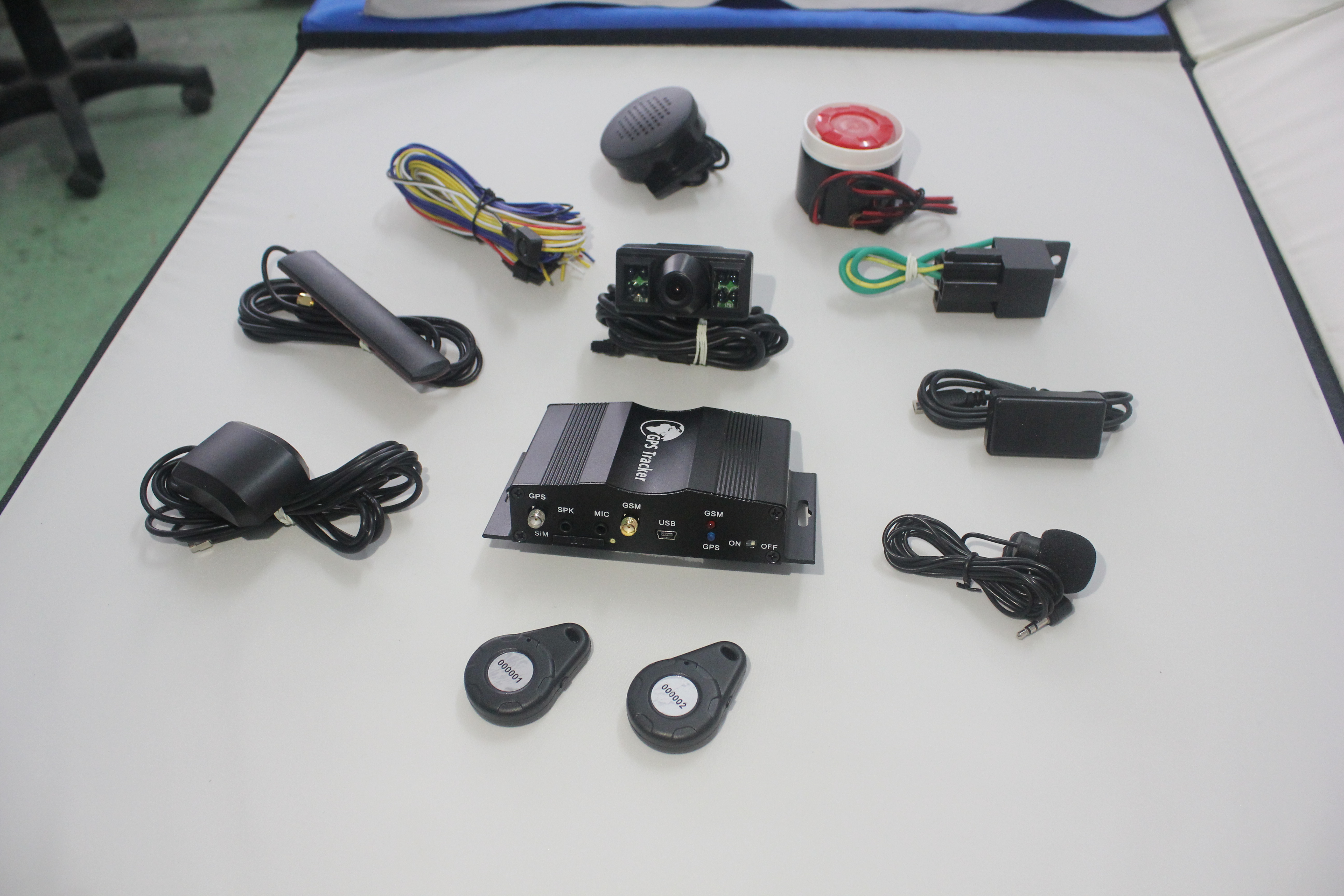

Standard package include:

Main unit         1pc

GSM antenna 1pc

GPS antenna 1pc

SOS button         1pc

Relay                 1pc

Wiring                 1set

Optional accessories:

Fuel Level Sensor depending on length & type

Temperature sensor + converter

RFID reader (2.4G, long distance, active type)

RFID tag (2.4G, long distance, active type)

Camera

AT501 GPS Vehicle tracker is the most advanced & cost-effective solution for vehicle security, real-time tracking & fleet management. It has the following unique functions:

 Camera for snapping & monitoring via MMS, email or platform;

 RFID car alarm system with long-distance tag;

 Crash alarm, fuel leaking alarm, speed limiter & fatigue driving alarm.
